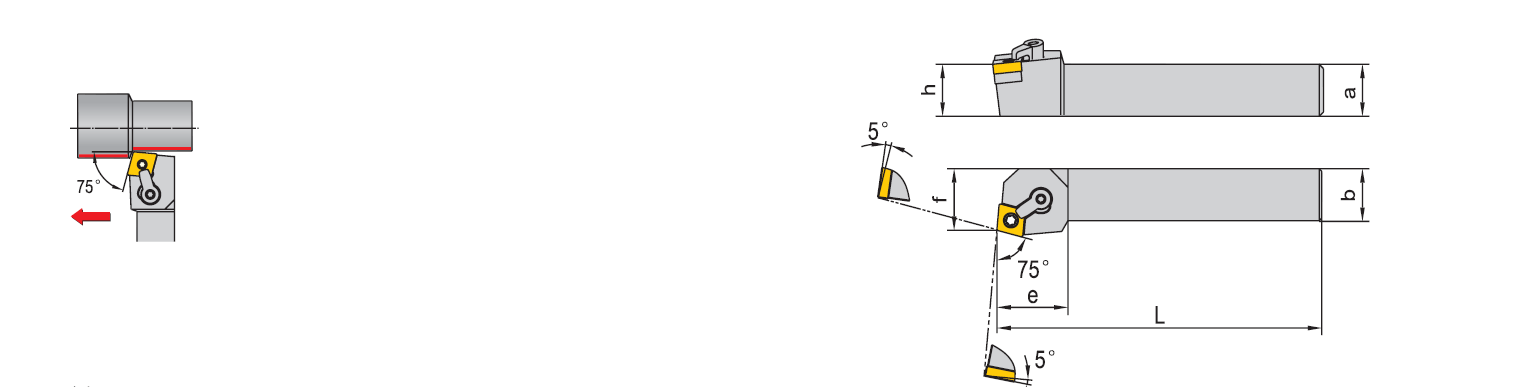

| 型号 Model | 库存 Stock | 尺寸Size (mm) | 刀片 Insert | 刀垫 Shim | 销钉 Lock pin | 压板 Clamp | 双头螺栓 Clamp screw | 扳手 Hex wrench | |||||||
| 右刀 Right hand | 左刀 Left hand | R | L | a | b | L | h | f | e | ||||||
| MCRNR2020K12 MCRNR3232P12 | MCRNL2020K12 MCRNL3232P12 | ○ ○ | ○ ○ | 20 32 | 20 32 | 125 170 | 20 32 | 22 35 | 32 32 | CN..1204.. | ICSN-433 | NL-46 | CL-20 | XNS-48 | S1/8，S3/32 |
| MCRNR3232P16 MCRNR4040R16 | MCRNL3232P16 MCRNL4040R16 | ○ ○ | ○ ○ | 32 40 | 32 40 | 170 200 | 32 40 | 35 43 | 38 38 | CN..1606.. | ICSN-533 | NL-58 | CL-12 | XNS-510 | S5/32，S1/8 |
| MCRNR3232P19 MCRNR4040R19 | MCRNL3232P19 MCRNL4040R19 | ○ ○ | ○ ○ | 32 40 | 32 40 | 170 200 | 32 40 | 35 43 | 38 38 | CN..1906.. | ICSN-633 | NL-68 | CL-12 | XNS-510 | S5/32，S9/64 |
| MCRNR4040R25 | MCRNL4040R25 | ○ | ○ | 40 | 40 | 200 | 40 | 43 | 45 | CN..2509.. | ICSN-846 | NL-810 | CL-24 | XNS-610 | S3/16，S5/32 |
