| 型号 Model | 库存 Stock | 尺寸Size (mm) | 刀片 Insert | 刀垫 Shim | 杠杆 Lever | 螺钉 Screw | 弹簧销 Tubular rivet | 扳手 Hex wrench | |||||||

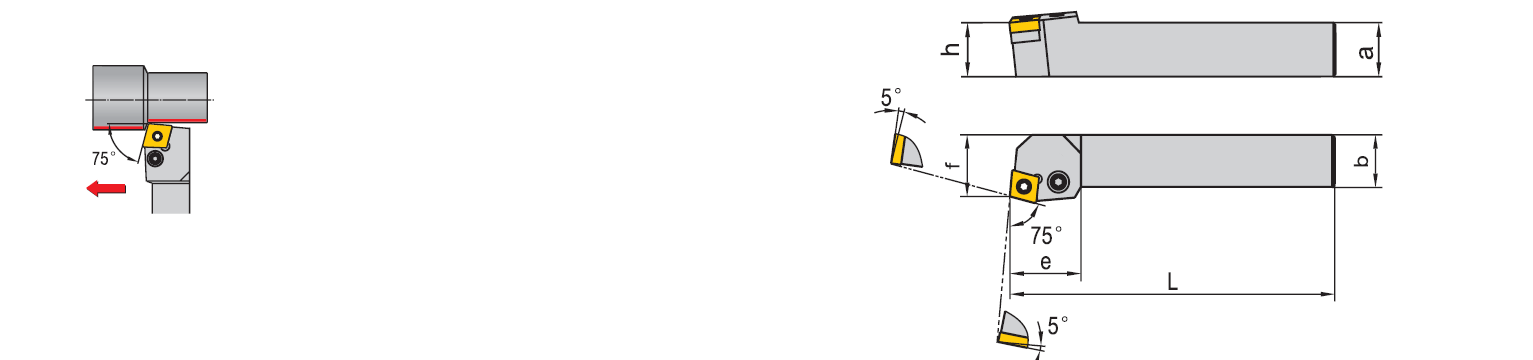

| 右刀 Right hand | 左刀 Left hand | R | L | a | b | L | h | f | e | ||||||
| PCRNR3232P16 PCRNR4040R16 | PCRNL3232P16 PCRNL4040R16 | ○ ○ | ○ ○ | 32 40 | 32 40 | 170 200 | 32 40 | 35 43 | 40 40 | CN..1606.. | PC1604 | PL-5 | PS0820A | SP08 | S3 |
| PCRNR4040R19 PCRNR5050S19 | PCRNL4040R19 PCRNL5050S19 | ○ ○ | ○ ○ | 40 50 | 40 50 | 200 250 | 40 50 | 43 53 | 40 40 | CN..1906.. | PC1904 | PL-6 | PS1027 | SP10 | S4 |
| PCRNR4040R25 PCRNR5050S25 | PCRNL4040R25 PCRNL5050S25 | ○ ○ | ○ ○ | 40 50 | 40 50 | 200 250 | 40 50 | 43 53 | 50 50 | CN..2509.. | PC2506 | PL-8 | PS1236 | SP13 | S6 |
