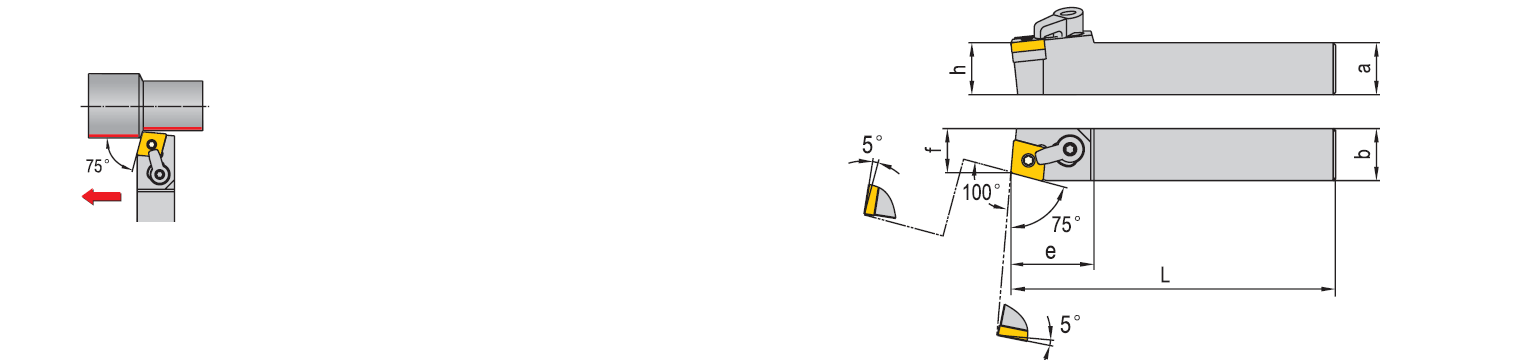

| 型号 Model | 库存 Stock | 尺寸Size (mm) | 刀片 Insert | 刀垫 Shim | 销钉 Lock pin | 压板 Clamp | 双头螺栓 Clamp screw | 扳手 Hex wrench | |||||||
| 右刀 Right hand | 左刀 Left hand | R | L | a | b | L | h | f | e | ||||||
| MCBNR2020K12 MCBNR2525M12 MCBNR3232P12 | MCBNL2020K12 MCBNL2525M12 MCBNL3232P12 | ○ ● ○ | ○ ○ ○ | 20 25 32 | 20 25 32 | 125 150 170 | 20 25 32 | 17 22 27 | 32 32 32 | CN..1204.. | ICSN-433 | NL-46 | CL-9 | XNS-59 | S5/32，S3/32 |
| MCBNR2525M16 MCBNR3232P16 | MCBNL2525M16 MCBNL3232P16 | ○ ○ | ○ ○ | 25 32 | 25 32 | 150 170 | 25 32 | 22 27 | 40 40 | CN..1606.. | ICSN-533 | NL-58 | CL-9 | XNS-510 | S5/32，S1/8 |
| MCBNR4040R19 | MCBNL4040R19 | ○ | ○ | 40 | 40 | 200 | 40 | 35 | 40 | CN..1906.. | ICSN-633 | NL-68 | CL-12 | XNS-510 | S5/32，S9/64 |
