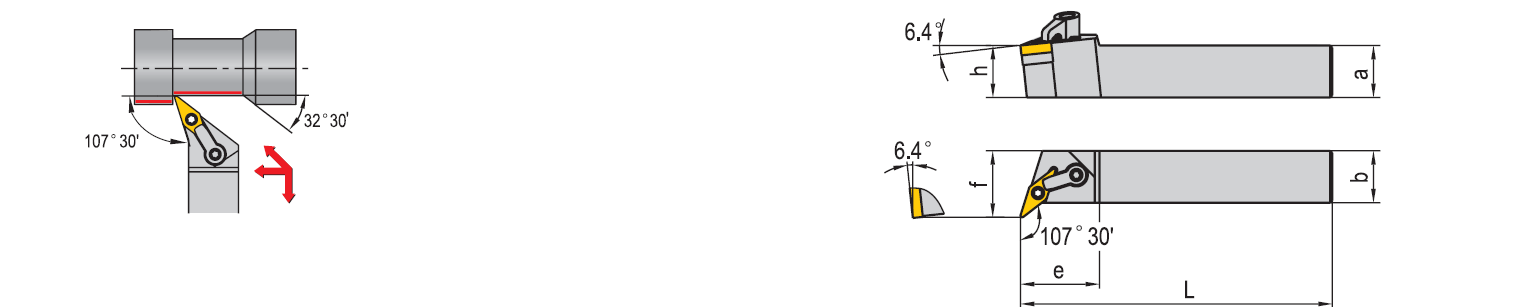

| 型号 Model | 库存 Stock | 尺寸Size (mm) | 刀片 Insert | 刀垫 Shim | 销钉 Lock pin | 压板 Clamp | 双头螺栓 Clamp screw | 扳手 Hex wrench | |||||||
| 右刀 Right hand | 左刀 Left hand | R | L | a | b | L | h | f | e | ||||||
| MVHNR2525M16 MVHNR3232P16 | MVHNL2525M16 MVHNL3232P16 | ○ ○ | ○ ○ | 25 32 | 25 32 | 150 170 | 25 32 | 32 40 | 38 38 | VN..1604.. | IVSN-322 | NL-34L | CL-30 | XNS-510 | S5/32，S5/64 |
