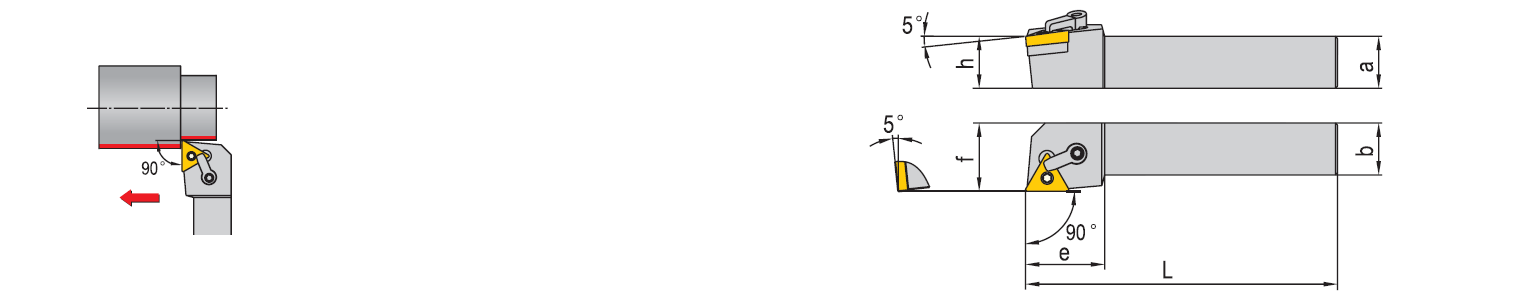

| 型号 Model | 库存 Stock | 尺寸Size (mm) | 刀片 Insert | 刀垫 Shim | 销钉 Lock pin | 压板 Clamp | 双头螺栓 Clamp screw | 扳手 Hex wrench | |||||||
| 右刀 Right hand | 左刀 Left hand | R | L | a | b | L | h | f | e | ||||||
| MTGNR1616H16 MTGNR2020K16 MTGNR2525M16 MTGNR3232P16 | MTGNL1616H16 MTGNL2020K16 MTGNL2525M16 MTGNL3232P16 | ○ ○ ○ ○ | ○ ○ ○ ○ | 16 20 25 32 | 16 20 25 32 | 100 125 150 170 | 16 20 25 32 | 20 25 32 40 | 29 29 29 29 | TN..1604.. | ITSN-323 | NL-34L | CL-6 | XNS-36 | S3/32，S5/64 |
| MTGNR2020K22 MTGNR2525M22 MTGNR3232P22 | MTGNL2020K22 MTGNL2525M22 MTGNL3232P22 | ○ ○ ○ | ○ ○ ○ | 20 25 32 | 20 25 32 | 125 150 170 | 20 25 32 | 25 32 40 | 35 35 35 | TN..2204.. | ITSN-433 | NL-46 | CL-9 | XNS-510 | S5/32，S3/32 |
