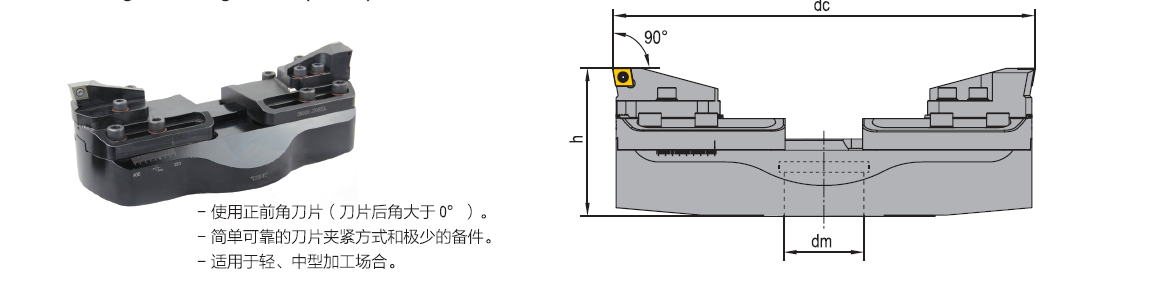

| 镗孔尺寸dc Boring range | 组合型号 Model | 尺寸Size （mm） | * | * | * | |
| dm | h | 刀柄 Tool Holders | 桥体Crossbars | 镗刀座 Slide insert holder | ||
| 150~200 | T90.RS150.CC12.40 | 40 | 95 | ..XMX40.. | CRB150 | SCC12.TS90 |
| 200~250 | T90.RS200.CC12.40 | 40 | 95 | CRB200 | ||
| 250~300 | T90.RS250.CC12.40 | 40 | 95 | CRB250 | ||
| 300~380 | T90.RS300.CC12.60 | 60 | 105 | ..XMX60.. | CRB300 | |
| 380~460 | T90.RS380.CC12.60 | 60 | 105 | CRB380 | ||
| 460~540 | T90.RS460.CC12.60 | 60 | 115 | CRB460 | ||
| 540~620 | T90.RS540.CC12.60 | 60 | 115 | CRB540 | ||
| 620~700 | T90.RS620.CC12.60 | 60 | 115 | CRB620 | ||
| *刀片需单独订购。 *刀柄需单独订购，详见B51页。 *交货时,桥体与镗刀座分开包装。 | ||||||
备件 | ||||||
| * | * | * | * | * | * | |
| 型号 Model | 库存 | 滑座Slide base | 螺钉Screw | 垫圈Washer | 扳手Hex wrench | 微调组件Adjustable member |
| Stock | ||||||
| CRB150 | ● | SDB50 | MS10030 | DT10 | S8 | ADJM05 |
| CRB200 | ● | |||||
| CRB250 | ● | |||||
| CRB300 | ● | SDB80 | ||||
| CRB380 | ● | |||||
| CRB460 | o | |||||
| CRB540 | o | |||||
| CRB620 | o | |||||
| * | * | * | * | * | * | |
| 型号 Model | 库存 | 螺钉Screw | 垫圈Washer | 扳手Hex wrench | 螺钉Screw | 扳手Torx wrench |
| Stock | ||||||
| SCC12.TS90 | ● | MS08020 | DT08 | S6 | C050A12S | T20 |
