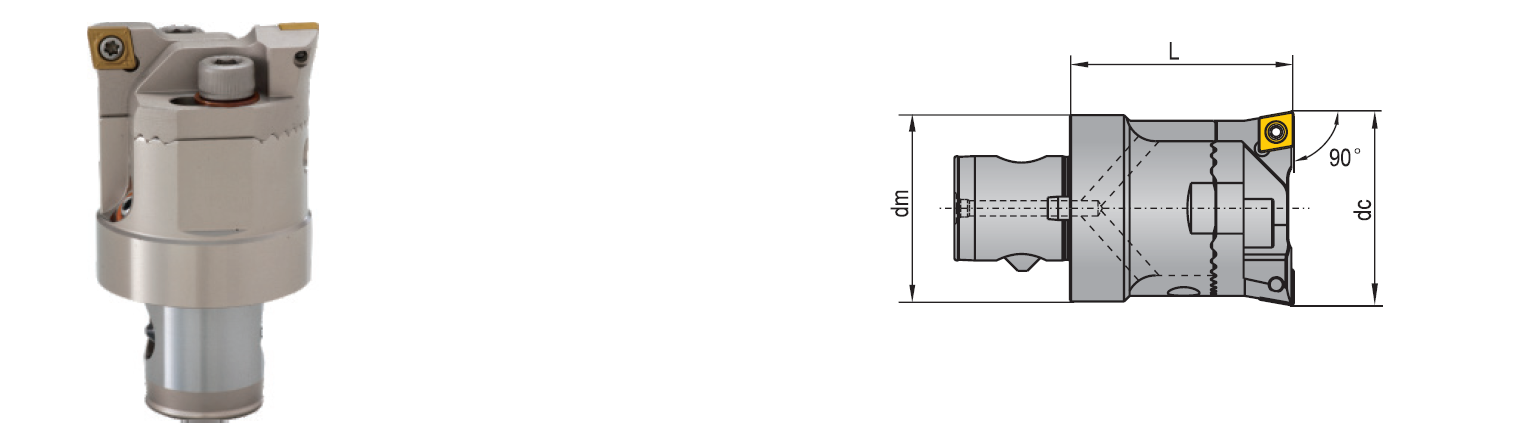

| 型号 Model | 库存 Stock | * | * | 镗孔尺寸dc Boring range | 尺寸Size （mm） | * | * | * | * | * | * | * | * | * | |
| 镗头型号 Cartridge | dm | L | 刀片 Insert | 螺钉 Screw | 扳手 Torx wrench | 刀体型号 Boring body | 螺钉 Screw | 扳手 Hex wrench | 垫圈 Washer | 扳手 Hex wrench | 重量 Weight | ||||
| 21CD25-TCR9026-45 | ● | 21CD25 | TCR9026.CC06A | 26-34 | 25 | 45 | CCMT060204 | C025A07S | FT7 | 21CD25-TR26-45 | MS04016N | S3 | DT04 | S1.5 | 0.13 |
| TCR9030.CC06B | 30-38 | - | |||||||||||||
| 21CD32-TCR9033-50 | ● | 21CD32 | TCR9033.CC06A | 33-43 | 32 | 50 | CCMT060204 | C025A07S | FT7 | 21CD32-TR33-50 | MS05016N | S4 | DT05 | S1.5 | 0.24 |
| TCR9038.CC06B | 38-48 | - | |||||||||||||
| 21CD40-TCR9042-60 | ● | 21CD40 | TCR9042.CC09A | 42-54 | 40 | 60 | CCMT09T308 | C035A08S | T15 | 21CD40-TR42-60 | MS06020N | S5 | DT06 | S1.5 | 0.37 |
| TCR9048.CC09B | 48-59 | - | |||||||||||||
| 21CD50-TCR9053-60 | ● | 21CD50 | TCR9053.CC09A | 53-70 | 50 | 60 | CCMT09T308 | C035A08S | T15 | 21CD50-TR53-60 | MS08020N | S6 | DT08 | S2.5 | 0.73 |
| TCR9061.CC09B | 61-78 | - | |||||||||||||
| 21CD63-TCR9068-80 | ● | 21CD63 | TCR9068.CC12A | 68-88 | 63 | 80 | CCMT120408 | C050A12S | T20 | 21CD63-TR68-80 | MS10025N | S8 | DT10 | S2.5 | 1.29 |
| TCR9075.CC12B | 75-95 | - | |||||||||||||
| 21CD63-TCR9084-80 | ● | 21CD63 | TCR9084.CC12A | 84-115 | 63 | 80 | CCMT120408 | C050A12S | T20 | 21CD63-TR84-80 | MS12025N | S10 | DT12 | S3 | 1.79 |
| TCR90100.CC12B | 100-131 | - | |||||||||||||
| 21CD80-TCR90110-90 | ● | 21CD80 | TCR90110.CC12A | 110-155 | 80 | 90 | CCMT120408 | C050A12S | T20 | 21CD80-TR110-90 | MS10030N | S8 | DT10 | S3 | 3.30 |
| TCR90132.CC12B | 132-177 | - | |||||||||||||
| 21CD100-TCR90150-115 | ● | 21CD100 | TCR90150.CC12A | 150-205 | 100 | 115 | CCMT120408 | C050A12S | T20 | 21CD100-TR150-115 | MS10030N | S8 | DT10 | TS3 | 6.40 |
| TCR90180.CC12B | 180-235 | - | |||||||||||||
| ※镗刀标准配置镗刀头TCR90□.□A，TCR90□.□B镗刀头需单独订购。 | ●标准库存 | ○订单生产 | |||||||||||||
| ※刀片需单独订购。 | |||||||||||||||
